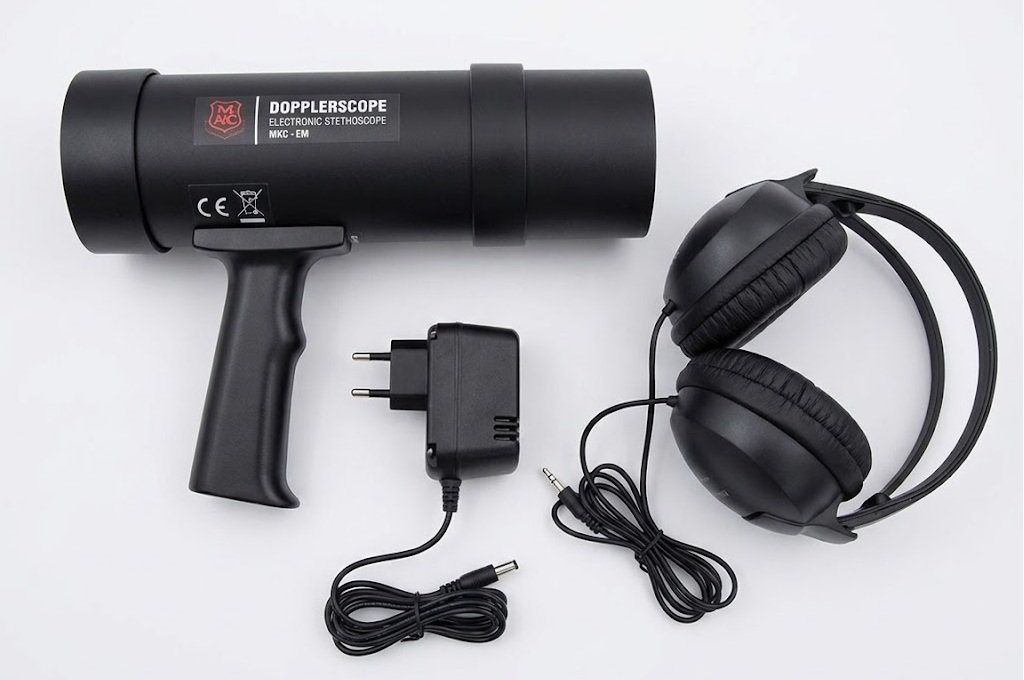

MKC-EM Electronic Stethoscope for Tactical EOD Sound Wave Detection

ELECTRONIC STETHOSCOPE - HIGH SENSITIVITY ACOUSTIC AND ELECTRICAL FIELD MONITORING

The Electronic Stethoscope is designed specifically for the EOD field, where it is necessary to detect very weak sound waves from mechanical clockworks fuses, electro mechanical and electronic device objects suspected to contain explosives, also where weak sound waves have to be detected. Engineered with a highly sturdy design fitted with splash water protection, the system features user-friendly electronic controls and a soundproof comfortable headset. The operating principle is based on the highly precise detection and amplification of sound waves using both contact and non-contact search heads.

  • Structural Acoustic Tracking: Capable of detecting faint timer sounds through dense solid materials such as brick walls, glass, wood, and packing materials.
  • Noisy Environment Immunity: Search head is completely immune to surrounding loud noise, ensuring reliable detection in high-risk environments.
  • Advanced Tactical Connectivity: Equipped with dedicated headphone connectivity for easy, direct use with Bomb Suit Helmet and visor assembly.

Technical Specifications

Target DetectionDetects mechanical (clockwise based), electro-mechanical and electronic timers, including wrist-watch based timers and electronic remote-controlled explosive devices using decoders such as pagers, cellular and telephone based systems.
Detection FieldsElectro-mechanical timers, pagers and cellular telephones are detected in the magnetic field, while electronic clock-based timers (acoustic and vibration mechanical) are detected in the electrical field. Mechanical and electronic timers with quartz digital movement of second/minute hand can also be detected.
Acoustic PenetrationCapable of detecting timer sounds through solid materials such as brick walls, glass, wood and packing materials.
Sound AmplificationProvides high sound amplification of minimum 5×10⁵ at a minimum detection distance of 15 cm.
Ambient Noise ProtectionSearch head is immune to surrounding loud noise, ensuring reliable detection in noisy environments.
EOD Gear IntegrationEquipped with headphone connectivity for easy use with Bomb Suit Helmet and visor assembly.
Sensitivity CalibrationVery high sensitivity with adjustable gain and frequency control for optimized detection.
Sensor ModulesSystem includes both contact and non-contact sensors for versatile search operations.
Operating Battery BackupMinimum operating time: 5 hours for both contact and non-contact sensors.
Accuracy ControlsSeparate gain and frequency controls for enhanced detection accuracy.
Frequency Coverage300 Hz - 5.5 kHz (certificate from internationally recognized government laboratory to be provided).
Weight ParametersLightweight and portable design - equipment weight not exceeding 1.5 kg, and less than 5 kg including accessories.
Power ConfigurationPowered by rechargeable batteries with 230V AC charging option.
Operating Temperature Range-15°C to +55°C (test certificate from reputed international laboratory).
Kit Engineering SafetyShock-proof and splash-resistant kit, supplied in a robust carrying case for safe transport and storage.
